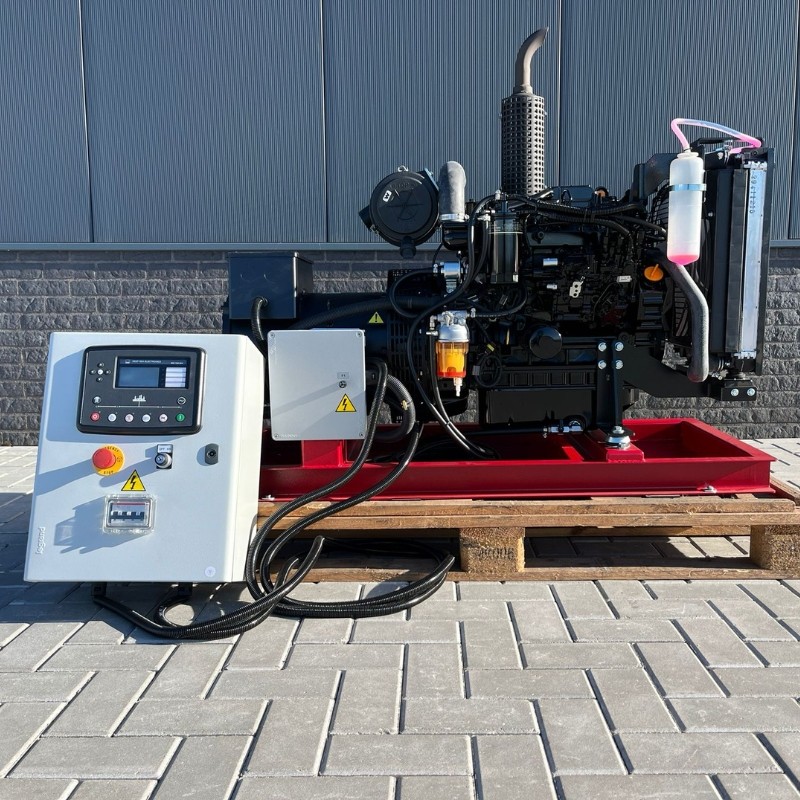

CGM V18 Vesselset Yanmar Diesel Stage 5(18 kVA 400V)
CGM V18 18 kVA Yanmar generator set. For inland shipping, fishing, and offshore. Equipped with a Stage 5 emission engine. Double-walled injector lines with leak detection are optional.
Description
{gformbuilderpro:3}
CGM V18 18 kVA Yanmar generator set. For inland shipping, fishing, and offshore. Equipped with a Stage 5 emission engine. Double-walled injector lines with leak detection are optional.
Supplied as standard with:
• Radiator cooling
• Engine oil drain pump
• Cold start glow plugs
• Steel Skid with integrated drip tray
(without fuel tank)
• Deep Sea 7320 MKII Automatic launch panel in separate cabinet with battery charger
• Start battery
• Plug-and-play
• Double-walled fuel line with leak detection (optional)
Product Details
GT0005
6 Items
Data sheet
- Type
- CGM V18 (Vessel Generator)
- Engine
- YANMAR 4TNV88-BIB
- Voltage regulation system
- AVR
- Frequency
- 50 Hz
- Voltage
- 400V
- Phase
- 3
- Max. power
- 19,8 kVA (400V)
- Continuous power
- 18 kVA (400V)
- The engine rpm
- 1500
- Machine
- Stamford
- Cooling system
- Liquid cooling
- Starting system
- Electric
- Sound level 7m dB(A).
- 70
- Fuel
- Diesel
- Emission class
- 5
- Power consumption
- 4,0 l/h at 75% load
- Weight
- 460 kg
- Dimensions (l x w x h):
- 1350 x 600 x 870 mm
- Warranty
- 1 year or 1500 running hours in a year
- Control panel
- Deep Sea
