Instagrid One Power Battery 3600 Watt

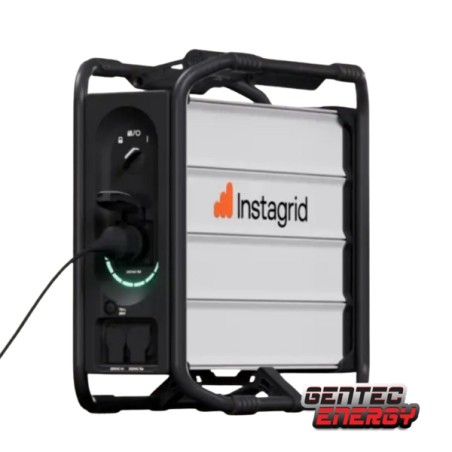

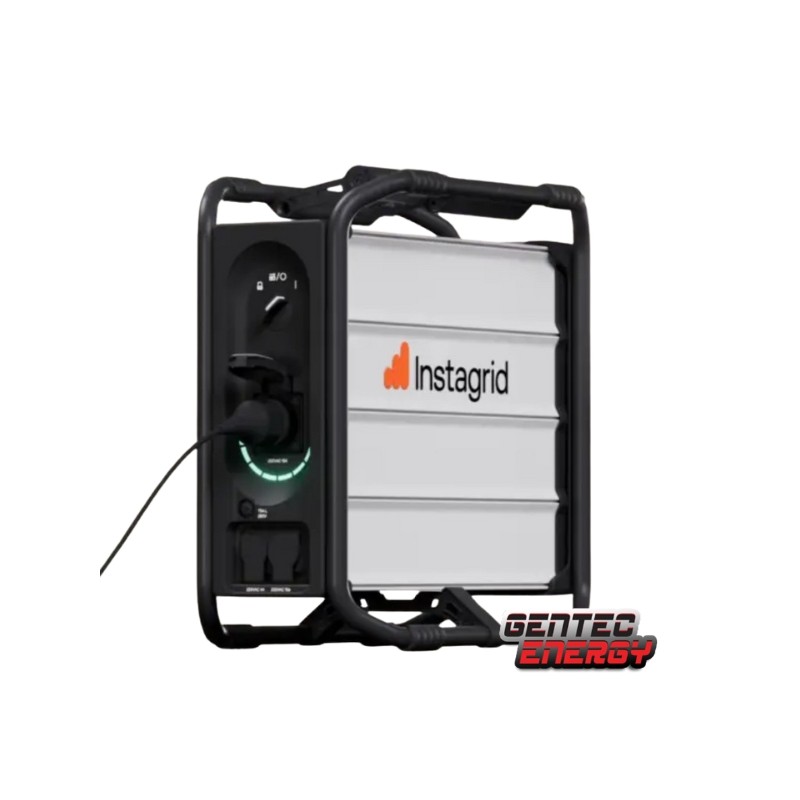

The Instagrid ONE is a professional portable battery power supply (also called a power station) that allows you to power powerful electrical equipment anywhere, without cables or a fixed connection.

€4,464.90
VAT included
Quantity

Description



The Instagrid ONE is a professional portable battery power supply (also called a power station) that allows you to power powerful electrical equipment anywhere, without cables or a fixed connection. The device is designed for construction sites, film sets, events, and other situations where temporary mains power is required. Its rated power is 3,600 watts continuous (230 V AC / 50 Hz), enough to run heavy tools and equipment. What's special is that this battery can handle a short peak of up to 18,000 watts. IP rating: IP54 (dust and splash-proof), designed for harsh outdoor or construction environments. Noise: very quiet (<10 dB), as it has no fans or combustion engine. Instead of a traditional generator with a combustion engine, the Instagrid ONE uses a lithium-ion battery with a microinverter system to deliver stable 230 V AC power with a pure sine wave, suitable for both tools and sensitive electronics.

Applications

Construction sites: drilling, sawing, compressors, welding
Film sets and events: lighting, cameras, sound systems
Emergency power: temporary power during power outages or in remote locations.

Benefits

Emission-free – no carbon monoxide or other exhaust fumes.
Low maintenance – no oil, fuel, or filters.
Quiet and quiet – ideal for indoor or busy environments.
Quick start – power available immediately with no warm-up time.

Additional features

With accessories like the Instagrid LINK, you can combine multiple units for longer runtimes or higher capacity (e.g., 3-phase applications). Depending on the model, you can monitor charge status and real-time usage via an app.

Product Details
6 Items

Data sheet

Type
Insta Grid One Battery
Voltage
230V AC / 50 Hz
Sound level 7m dB(A).
10 dB(A)
Weight
20 kg
Dimensions (l x w x h):
420 x 210 x 420 mm
Rated output power
3.6 kW (16 A)
150% overload (500 seconds)
5.4 kW (24 A)
200% overload (50 seconds)
7.2 kW (32 A)
250% overload (10 seconds)
9.0 kW (40 A)
Peak power
18.0 kW (80 A)
Maximum short-circuit current
300 A
Maximum operating time (idle)
150 h
Line protection
16 A – equivalent to B16
Operating temperature
- 20 °C up to 60 °C
Battery capacity
2 .1 kWh
IP Class
IP 54
Protection class
Class II / double insulated
Storage (switched off)
3 years
Output socket
CEE 7/3 Socket (16 A)
Input fuse
T5A L 250V
