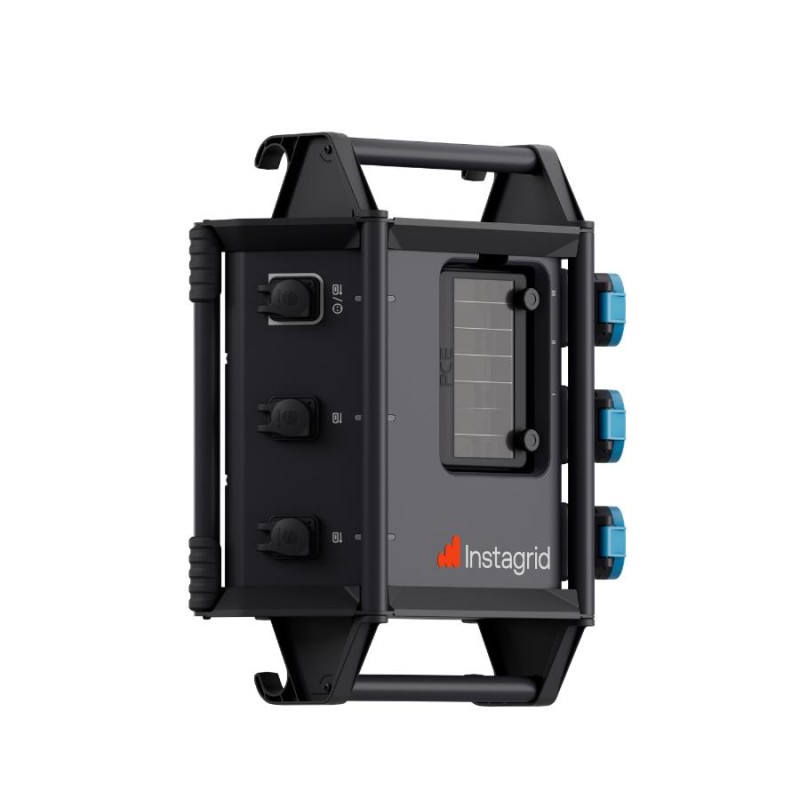

Instagrid Link 230V

Fiche technique

Type

Insta Grid One Battery

La Tension

230V AC / 50 Hz

Niveau sonore 7m dB(A).

10 dB(A)

Poids

20 kg

Dimensions (l x w x h):

420 x 210 x 420 mm

Puissance de sortie nominale

3.6 kW (16 A)

150% overload (500 seconds)

5.4 kW (24 A)

200% overload (50 seconds)

7.2 kW (32 A)

250% overload (10 seconds)

9.0 kW (40 A)

Peak power

18.0 kW (80 A)

Maximum short-circuit current

300 A

Maximum operating time (idle)

150 h

Line protection

16 A – equivalent to B16

Operating temperature

- 20 °C up to 60 °C

Battery capacity

2 .1 kWh

IP Class

IP 54

Protection class

Class II / double insulated

Storage (switched off)

3 years

Output socket

CEE 7/3 Socket (16 A)

Input fuse

T5A L 250V
